LEA18-EVOX-30-O/I

LEA18-EVOX-30-O/I
Hyper heat series

LEA18-EVOX-30-O

MSRP

3400 CAD

Installation non incluse

AHRI
Outdoor unit

This 18,000 BTU (1.5-ton) outdoor unit is designed for central venting heat pump systems and operates down to -30°C. It features gold-plated fins for enhanced corrosion protection, a plate heater to prevent freezing, and an inverter compressor to maximize energy efficiency. Built to withstand the harsh Canadian climate, this central unit delivers consistent performance year-round. It is backed by a 10-year parts and labor warranty from a Canadian manufacturer renowned for its heating solutions adapted to cold climates.

Rated power

18 000 BTU/H

AHRI

BTU/h max. at 5°F/-15°C

18,629 Max Btu/h

Nominal BTU/hr at 47°F/8°C

19,000 Btu/h nominal

COP at 5°F/-15°C

2.04

HSPF2

11.5

Line size

3/8" / 3/4"

Size LxWxH (mm)

890 x 342 x 673

Taille WxDxH (in)

35.04 x 13.46 x 26.5

Poids (Kgs)

46.32

Poids (LBs)

102.95

Gas

410A

Guarantee

10-year parts and labor warranty

Temperature

-35°C

Power supply

208/230v, 1ph, 60hz

Technical Specifications

LEA18-EVOX-30-O

MSRP

3400 CAD

Installation non incluse

LEA18-EVOX-30-I

MSRP

2300 CAD

Installation non incluse

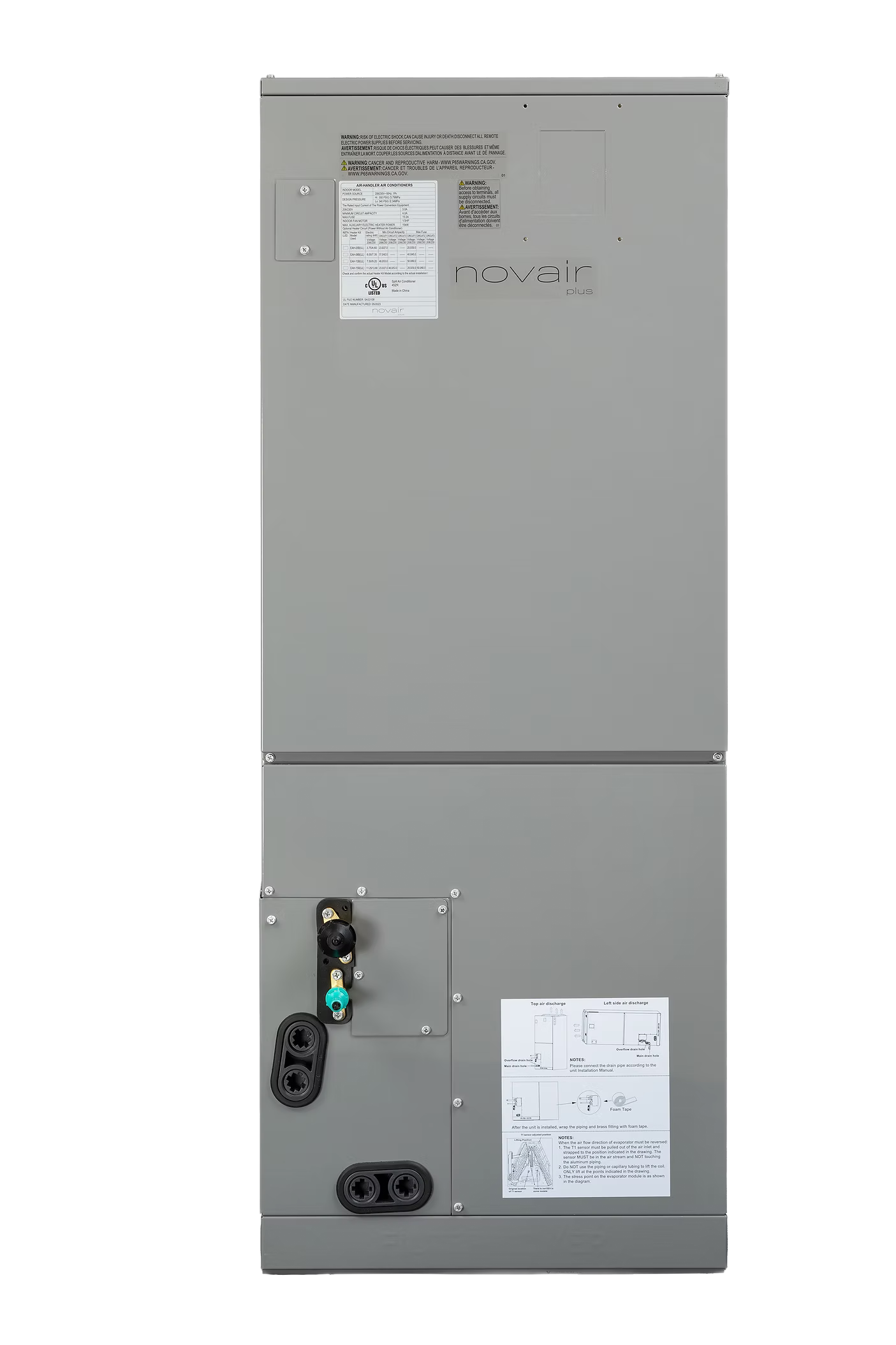

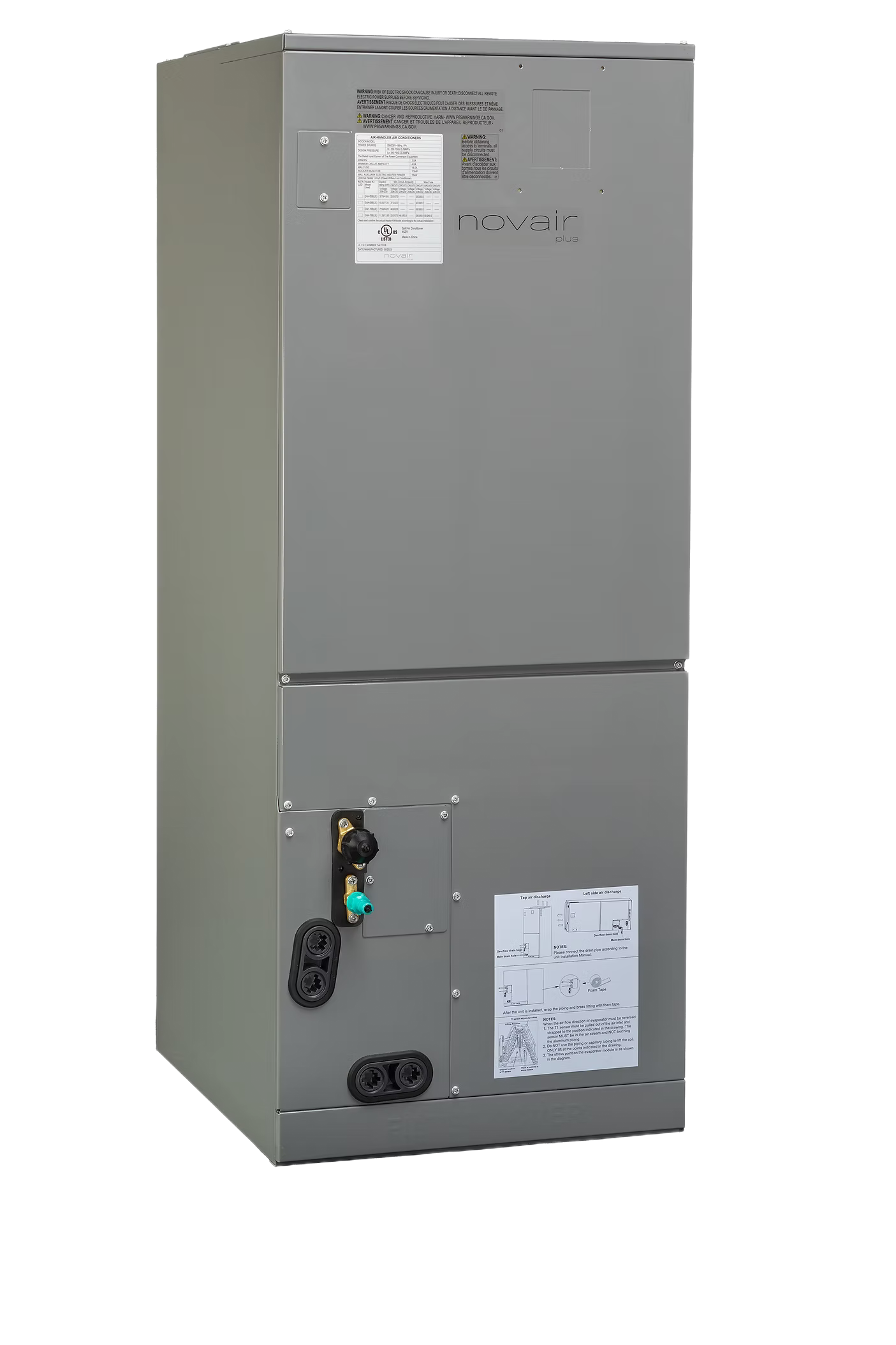

Indoor unit

This 18,000 BTU (1.5-ton) indoor unit is designed for central ducted heat pump systems. It provides even and efficient air distribution throughout the home, with easy integration into existing systems. Engineered to meet the needs of Canadian homes, it delivers consistent heating and cooling performance thanks to its high-efficiency air handling. It is backed by a 10-year parts and labor warranty from a Canadian manufacturer renowned for its cold-climate solutions.

Rated power

18 000 BTU/h

Line size

3/8" / 3/4"

Size LxWxH (mm)

534 x 445 x 1143

Taille WxDxH (in)

21.02 x 17.52 x 45.0

Poids (Kgs)

58.23

Poids (LBs)

129.41

Gas

410A

Guarantee

10-year parts and labor warranty

Power supply

208/230v, 1ph, 60hz

Technical Specifications

LEA18-EVOX-30-I

MSRP

2300 CAD

Installation non incluse
