LEA48-EVOX-30-O/I

LEA48-EVOX-30-O/I
Hyper heat series

LEA48-EVOX-30-O

MSRP

5920 CAD

Installation non incluse

AHRI
Outdoor unit

This 48,000 BTU outdoor unit is designed for central venting heat pump systems and operates down to -30°C. It features gold-plated fins for enhanced corrosion protection, a plate heater to prevent freezing, and an inverter compressor to maximize energy efficiency. Built to withstand the harsh Canadian climate, this central unit delivers consistent performance year-round. It is backed by a 10-year parts and labor warranty from a Canadian manufacturer renowned for its heating solutions adapted to cold climates.

Rated power

48 000 BTU/h

AHRI

BTU/h max. at 5°F/-15°C

46,000 Max Btu/h

Nominal BTU/hr at 47°F/8°C

50,000 Btu/h nominal

COP at 5°F/-15°C

1.9

HSPF2

11.5

Line size

3/8" / 3/4"

Size LxWxH (mm)

1095x495x1480

Taille WxDxH (in)

43.11 x 19.49 x 58.27

Poids (Kgs)

112.9

Poids (LBs)

248.9

Gas

410A

Guarantee

10-year parts and labor warranty

Temperature

-35°C

Power supply

208/230v, 1ph, 60hz

Technical Specifications

LEA48-EVOX-30-O

MSRP

5920 CAD

Installation non incluse

LEA48-EVOX-30-I

MSRP

4070 CAD

Installation non incluse

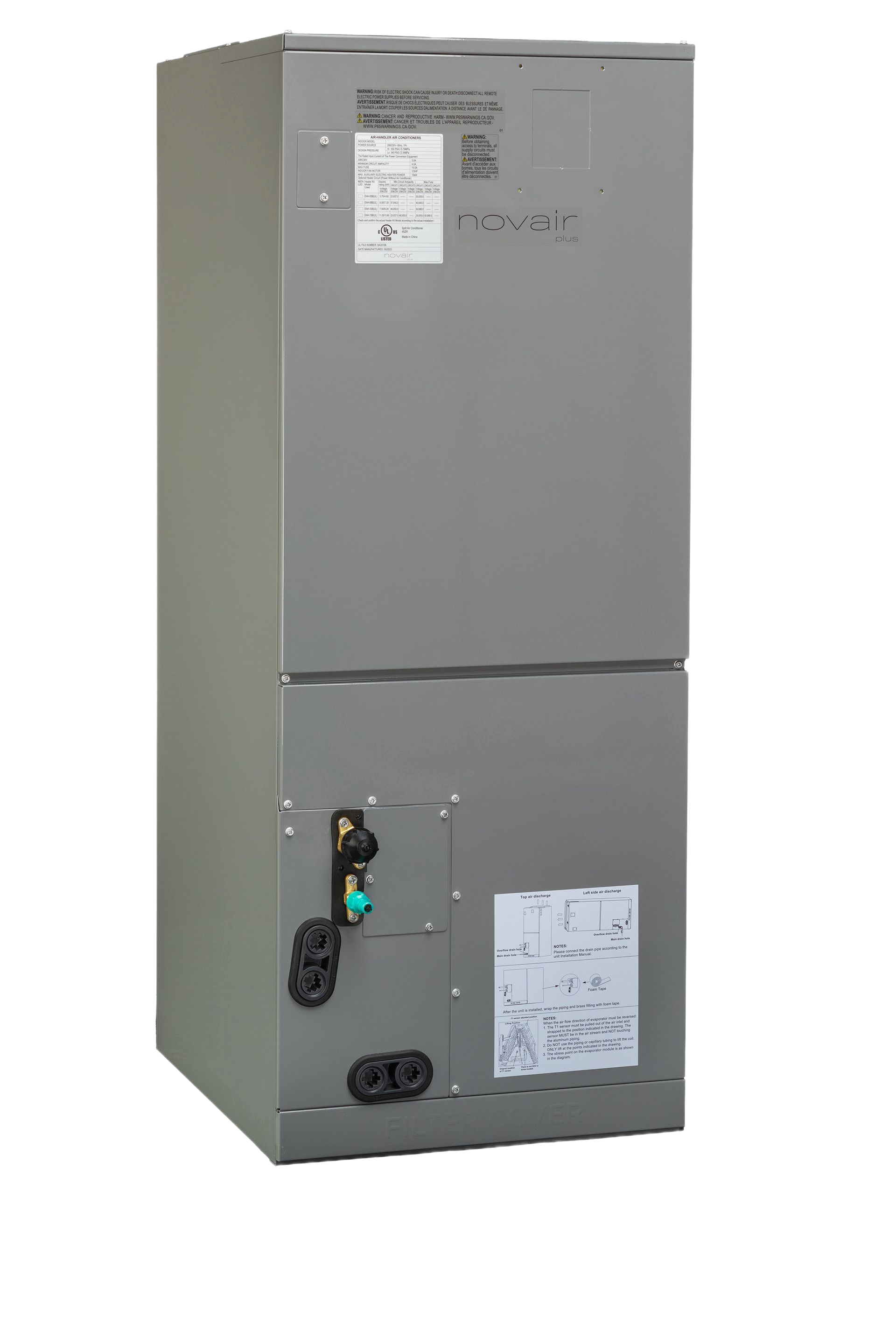

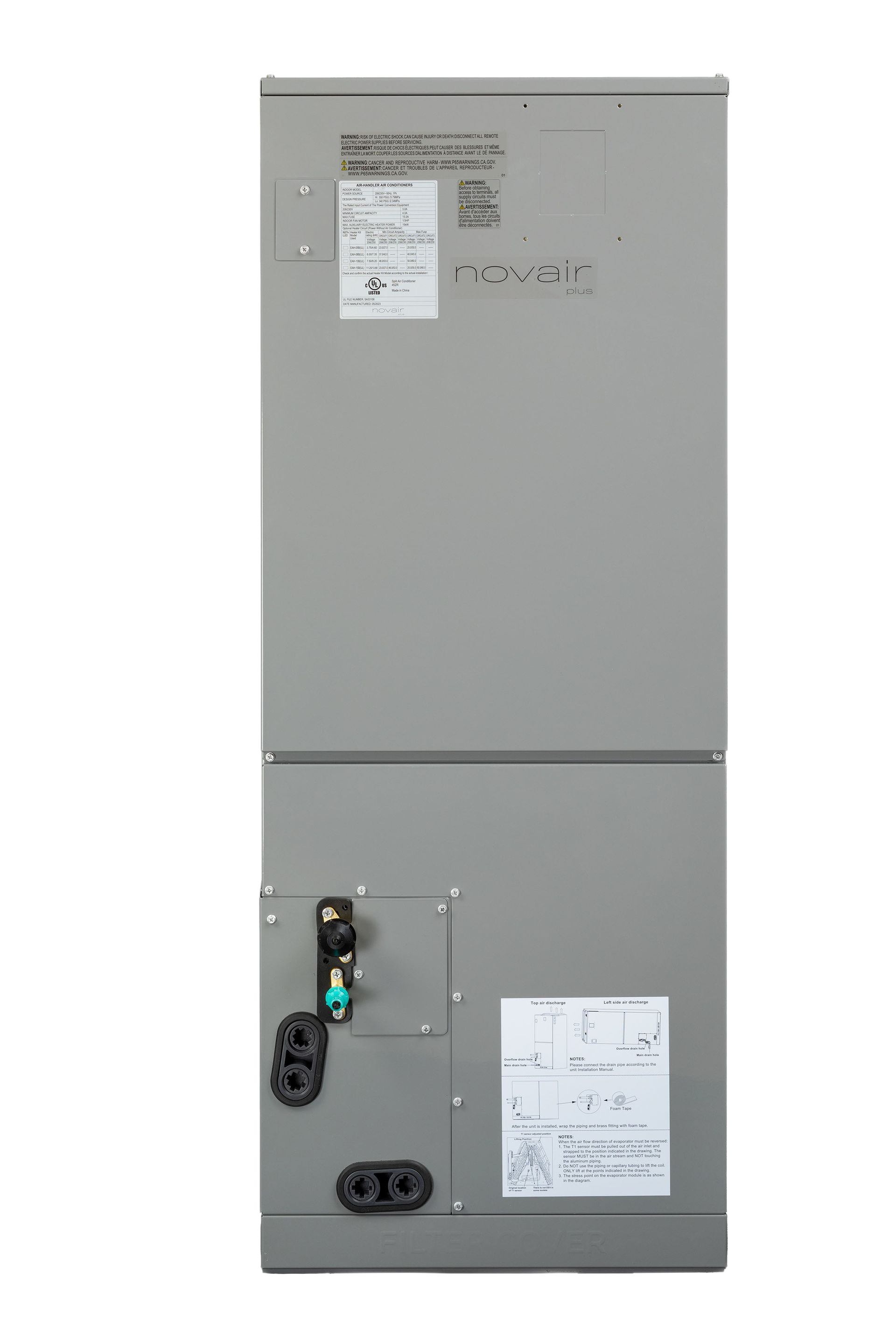

Indoor unit

This 48,000 BTU indoor unit is designed for central ducted heat pump systems. It provides even and efficient air distribution throughout the home, with easy integration into existing systems. Engineered to meet the needs of Canadian homes, it delivers consistent heating and cooling performance thanks to its high-efficiency air handling. It is backed by a 10-year parts and labor warranty from a Canadian manufacturer renowned for its cold-climate solutions.

Rated power

48 000 BTU/h

Line size

3/8" / 3/4"

Size LxWxH (mm)

675x620x1335

Taille WxDxH (in)

26.57 x 24.41 x 52.56

Poids (Kgs)

70.9

Poids (LBs)

156.3

Gas

410A

Guarantee

10-year parts and labor warranty

Power supply

208/230v, 1ph, 60hz

Technical Specifications

LEA48-EVOX-30-I

MSRP

4070 CAD

Installation non incluse
